Non-transfected (–) and transfected (+) 293T whole cell extracts (50 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with ARG2 antibody (GTX118048) diluted at 1:2000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

ARG2 antibody detects ARG2 protein at mitochondria on mouse duodenum by immunohistochemical analysis.
Sample: Paraffin-embedded mouse duodenum.
ARG2 antibody (GTX118048) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

ARG2 antibody detects ARG2 protein at mitochondria on mouse kidney by immunohistochemical analysis.
Sample: Paraffin-embedded mouse kidney.
ARG2 antibody (GTX118048) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

Immunohistochemical analysis of paraffin-embedded U373 xenograft, using ARG2(GTX118048) antibody at 1:500 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

293T whole cell and cytoplasm extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with ARG2 antibody (GTX118048) diluted at 1:1000.

ARG2 antibody detects ARG2 protein at mitochondria by immunofluorescent analysis.
Sample: HepG2 cells were fixed in ice-cold MeOH for 5 min.
Green: ARG2 protein stained by ARG2 antibody (GTX118048) diluted at 1:500.
Blue: Hoechst 33342 staining.

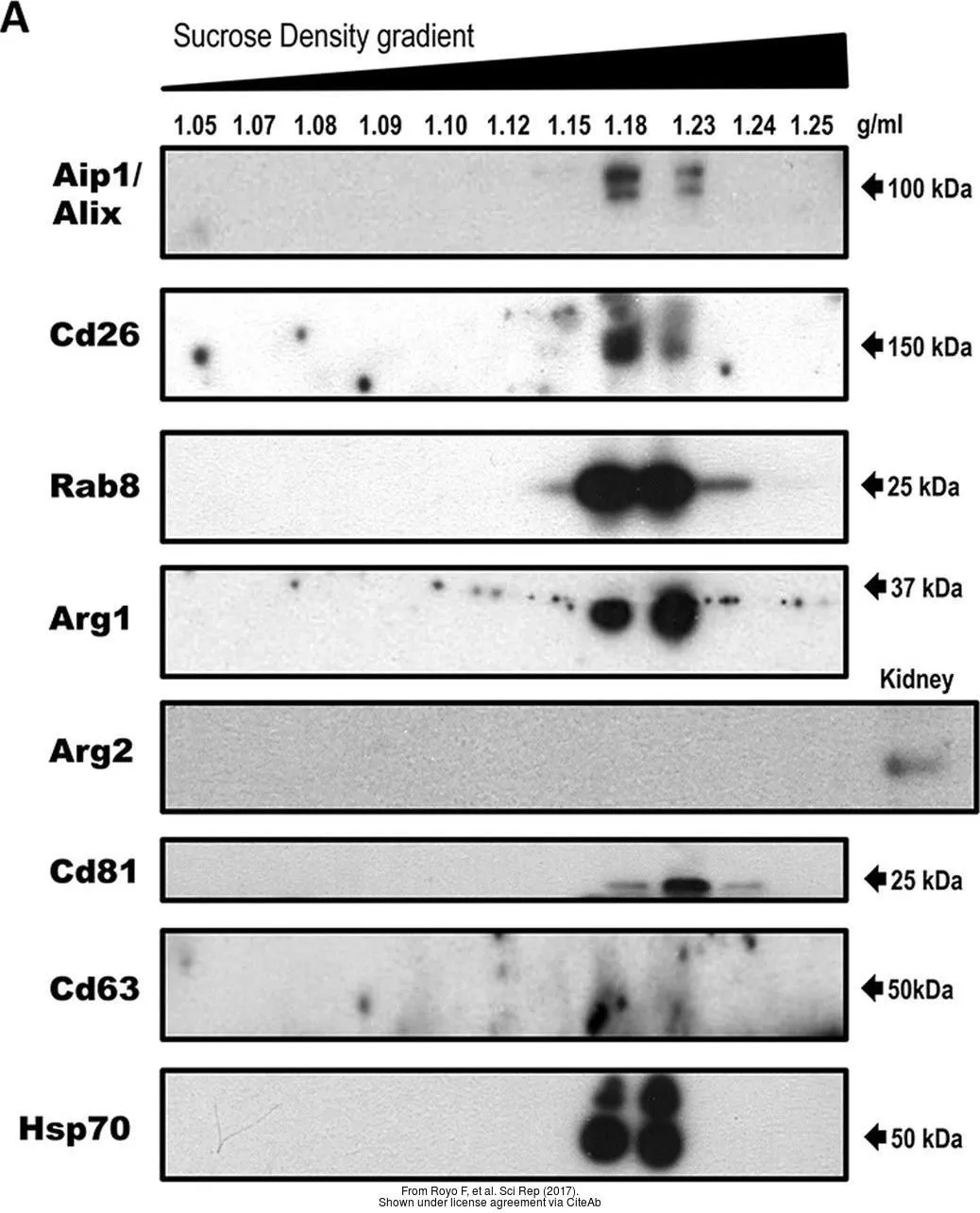

The data was published in the journal Sci Rep in 2017.PMID: 28211494
