Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with ATP6V1A antibody [GT811] (GTX633543) diluted at 1:500.

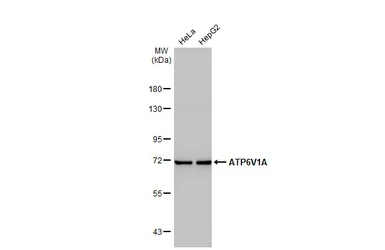

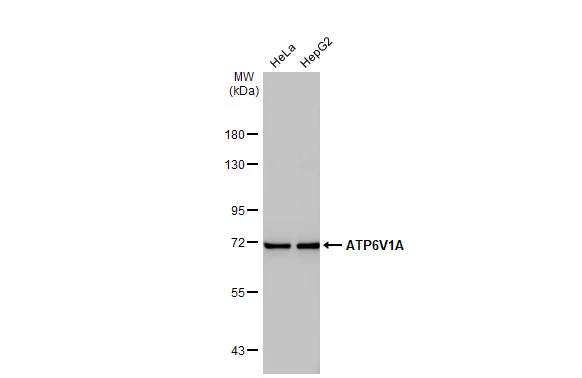

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with ATP6V1A antibody [GT811] (GTX633543) diluted at 1:1000. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.

ATP6V1A antibody [GT811] detects ATP6V1A protein at cytoplasm by immunofluorescent analysis.
Sample: HepG2 cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: ATP6V1A stained by ATP6V1A antibody [GT811] (GTX633543) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).

ATP6V1A antibody [GT811] detects ATP6V1A protein at cytoplasm by immunofluorescent analysis.
Sample: Hep G2 cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: ATP6V1A protein stained by ATP6V1A antibody [GT811] (GTX633543) diluted at 1:200.
Blue: Hoechst 33342 staining.

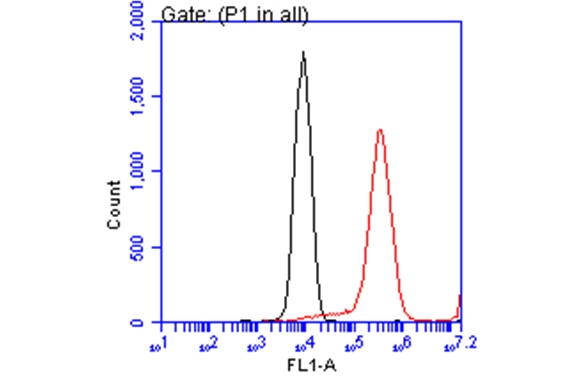

ATP6V1A antibody [GT811] (GTX633543) detects ATP6V1A protein by flow cytometry analysis.
Sample: HepG2 cell.
Black: Unlabelled sample was used as a control.
Red: ATP6V1A antibody [GT811] (GTX633543) dilution: 1:50.
Acquisition of 20,000 events were collected for FACS analysis.

ATP6V1A antibody [GT811] detects ATP6V1A protein at cytoplasm by immunohistochemical analysis.
Sample: Paraffin-embedded rat liver.
ATP6V1A stained by ATP6V1A antibody [GT811] (GTX633543) diluted at 1:200.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min
