Wild-type (WT) and CD146 knockout (KO) HeLa cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with CD146 antibody [C1C3] (GTX108777) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

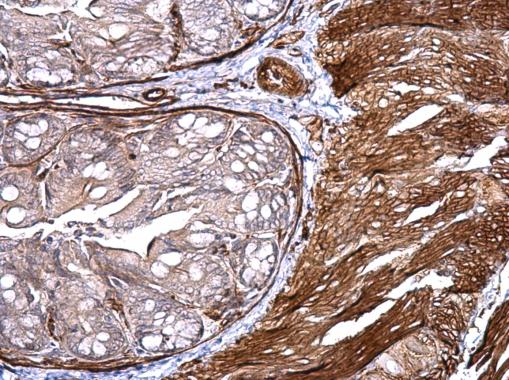

CD146 antibody [C1C3] detects CD146 protein at membrane on mouse colon by immunohistochemical analysis.
Sample: Paraffin-embedded mouse colon.
CD146 antibody [C1C3] (GTX108777) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

CD146 antibody [C1C3] detects CD146 protein at membrane on mouse skin by immunohistochemical analysis.
Sample: Paraffin-embedded mouse skin.
CD146 antibody [C1C3] (GTX108777) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

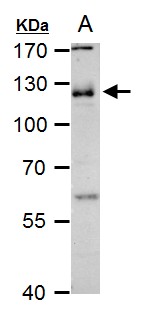

CD146 antibody [C1C3] detects CD146 protein by western blot analysis.
A. 50 μg rat liver extract
7.5 % SDS-PAGE
CD146 antibody [C1C3] (GTX108777) dilution: 1:1000

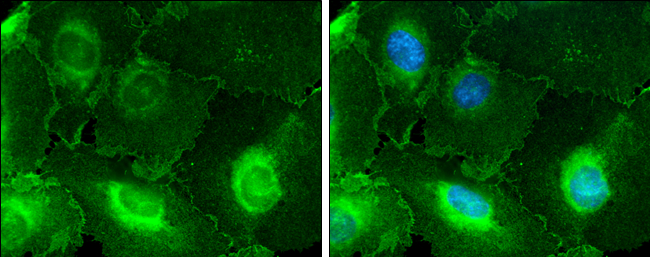

CD146 antibody [C1C3] detects CD146 protein at cell membrane and cytoplasm by immunofluorescent analysis.
Sample: HUVEC cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: CD146 protein stained by CD146 antibody [C1C3] (GTX108777) diluted at 1:500.
Blue: Hoechst 33342 staining.

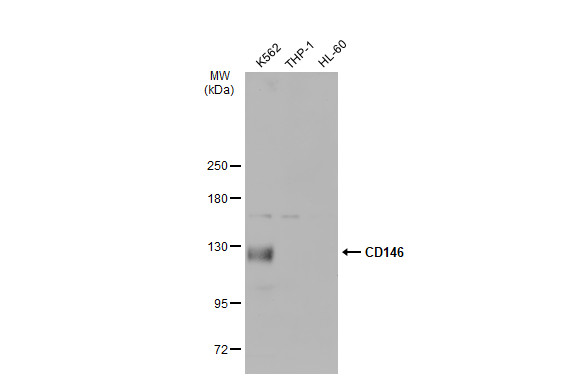

Various whole cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with CD146 antibody [C1C3] (GTX108777) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

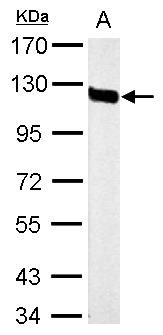

CD146 antibody [C1C3] detects CD146 protein by Western blot analysis.
A. 30 μg HUVEC whole cell lysate/extract
7.5 % SDS-PAGE
CD146 antibody [C1C3] (GTX108777) dilution: 1:10000

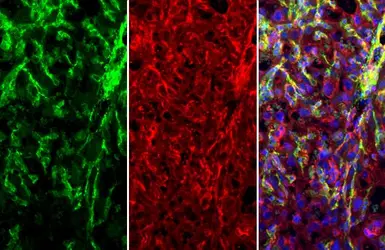

CD146 antibody [C1C3] detects CD146 protein at cell membrane by immunohistochemical analysis.
Sample: Paraffin-embedded mouse placenta.
Green: CD146 stained by CD146 antibody [C1C3] (GTX108777) diluted at 1:250.
Red: alpha Tubulin, a cytoskeleton marker, stained by alpha Tubulin antibody [GT114] (GTX628802) diluted at 1:1000.
Blue: Fluoroshield with DAPI (GTX30920).
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

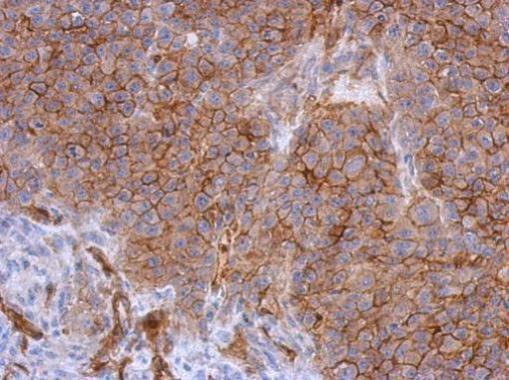

Immunohistochemical analysis of paraffin-embedded J5 xenograft, using CD146(GTX108777) antibody at 1:500 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

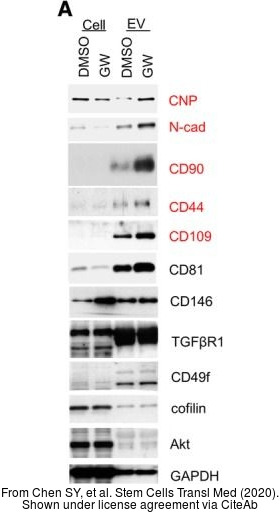

The data was published in the journal Stem Cells Transl Med in 2020.PMID: 31943851
