WB analysis of various samples using GTX00893 CDT2 antibody. Doublet bands reflect post-translational phospholylation.
Lane 1 : HeLa whole cell lysate
Lane 2 : MCF-7 whole cell lysate
Lane 3 : NIH-3T3 whole cell lysate
Lane 4 : CHO whole cell lysate
Dilution : 1:200
Loading : 40 μg

WB analysis of HeLa whole cell lysate using GTX00893 CDT2 antibody.
Dilution : 1:2000
Loading : 20 μg

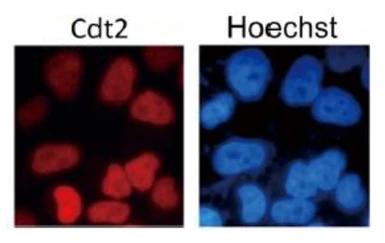

ICC/IF analysis of HeLa cells using GTX00893 CDT2 antibody. Cdt2 protein is localized in nuclei at all cell stages.
Fixation : 4% PFA, 10 min
Permeabilization : 0.25% (v/v) Triton X-100 in PBS

WB analysis of HeLa cells were transfected with control or Cdt2 siRNA using GTX00893 CDT2 antibody. Cdt2 is phosphorylated after UV irradiation as shown by the band shift-up in irradiated sample (UV +).
