IP analysis of DDDDK tagged GLUT5 overexpressed HEK293T lysate using GTX83627 GLUT5 antibody [14C8].After extensive wash to remove any non-specific binding, the immuno-precipitated products were analyzed with rabbit anti-DDDDK polyclonal antibody.
IP reaction : 2μg antibody / 500μl cell lysate

WB analysis of HEK293T cells transfected with GLUT5 plasmid (Right) or empty vector (Left) for 48 hrs using GTX83627 GLUT5 antibody [14C8].
Loading : 5 ug per lane

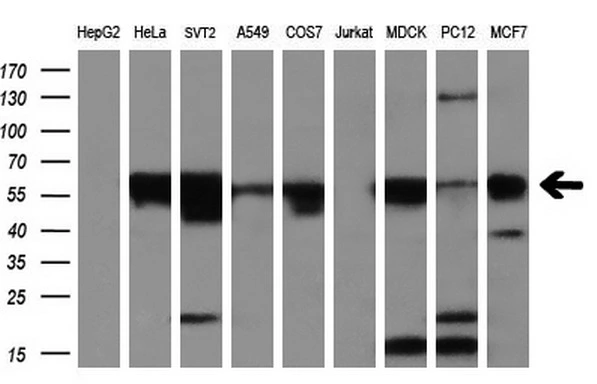

WB analysis of various cell lines using GTX83627 GLUT5 antibody [14C8].
Loading : 35 ug per lane
Dilution : 1:200

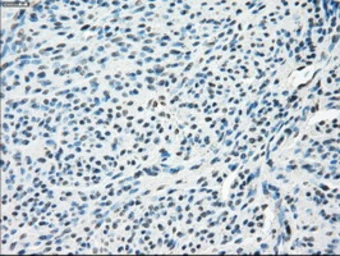

IHC-P analysis of human endometrium tissue using GTX83627 GLUT5 antibody [14C8].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.

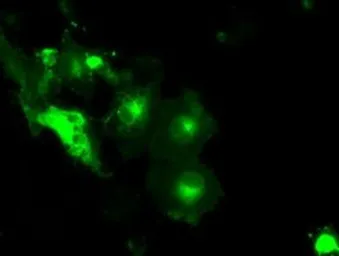

ICC/IF analysis of COS7 cells transiently transfected with GLUT5 plasmid using GTX83627 GLUT5 antibody [14C8].

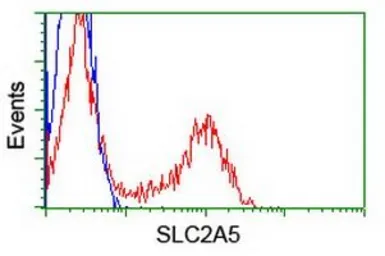

FACS analysis of HEK293T cells transfected with either GLUT5 plasmid(Red) or empty vector control plasmid(Blue) using GTX83627 GLUT5 antibody [14C8].
