Wild-type (WT) and HSP27 knockout (KO) HeLa cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with HSP27 antibody (GTX101145) diluted at 1:20000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Non-transfected (–) and transfected (+) HT-29 whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with HSP27 antibody (GTX101145) diluted at 1:10000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

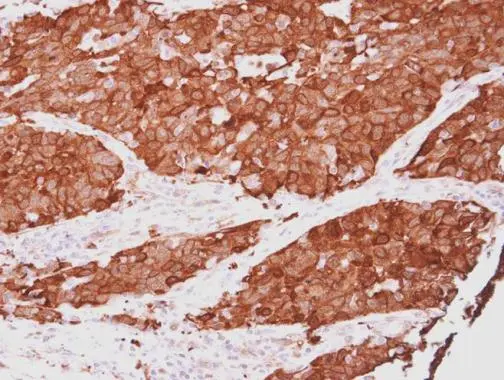

HSP27 antibody detects HSP27 protein at cytoplasm in human lung papillary carcinoma by immunohistochemical analysis.
Sample: Paraffin-embedded human lung papillary carcinoma.
HSP27 antibody (GTX101145) diluted at 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

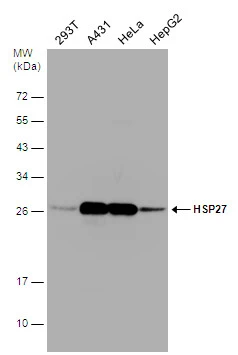

Various whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with HSP27 antibody (GTX101145) diluted at 1:10000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Sample (50 μg of whole cell lysate)
A: mouse liver
12% SDS PAGE
GTX101145 diluted at 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

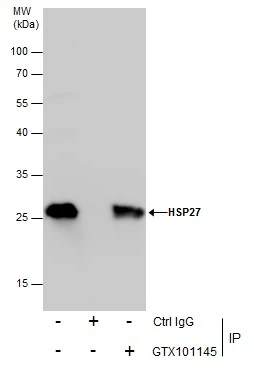

Immunoprecipitation of HSP27 protein from HeLa whole cell extracts using 5 μg of HSP27 antibody (GTX101145).
Western blot analysis was performed using HSP27 antibody (GTX101145).
EasyBlot anti-Rabbit IgG (GTX221666-01) was used as a secondary reagent.

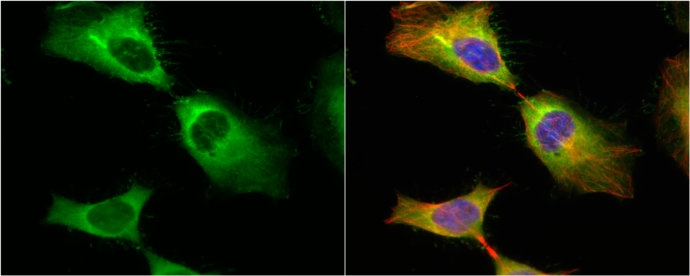

HSP27 antibody detects HSP27 protein at cytoplasm and cytoskeleton by immunofluorescent analysis.
Sample: HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: HSP27 protein stained by HSP27 antibody (GTX101145) diluted at 1:1000.
Red: phalloidin, a cytoskeleton marker, stained by phalloidin (invitrogen, A12380) diluted at 1:200.
Blue: Hoechst 33342 staining.
