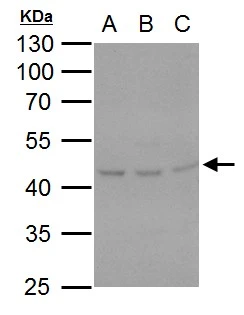

HSP47 antibody [N2C2], Internal detects HSP47 protein by western blot analysis.
A. 30 μg A431 whole cell lysate/extract
B. 30 μg HeLa whole cell lysate/extract
C. 30 μg HepG2 whole cell lysate/extract
10% SDS-PAGE
HSP47 antibody [N2C2], Internal (GTX103011) dilution: 1:500
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

HSP47 antibody [N2C2], Internal detects HSP47 protein at cytosol on mouse kidney by immunohistochemical analysis.
Sample: Paraffin-embedded mouse kidney.
HSP47 antibody [N2C2], Internal (GTX103011) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

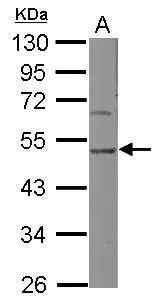

Sample (30 μg of whole cell lysate)
A: NIH-3T3
10% SDS PAGE
GTX103011 diluted at 1:500
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

HSP47 antibody [N2C2], Internal detects HSP47 protein by western blot analysis.
A. 30 μg U87-MG whole cell lysate/extract
B. 30 μg SK-N-SH whole cell lysate/extract
C. 30 μg IMR32 whole cell lysate/extract
D. 30 μg SK-N-AS whole cell lysate/extract
10% SDS-PAGE
HSP47 antibody [N2C2], Internal (GTX103011) dilution: 1:500
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

HSP47 antibody [N2C2], Internal detects HSP47 protein at cytosol on human breast carcinoma by immunohistochemical analysis.
Sample: Paraffin-embedded human breast carcinoma.
HSP47 antibody [N2C2], Internal (GTX103011) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min
