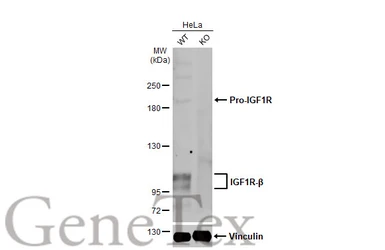

Wild-type (WT) and IGF1R knockout (KO) HeLa cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with IGF1R beta antibody [HL1957] (GTX637794) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.

IGF1R beta antibody [HL1957] detects IGF1R protein at cell membrane and cytoplasm by immunohistochemical analysis.
Sample: Paraffin-embedded human breast carcinoma.
IGF1R beta stained by IGF1R beta antibody [HL1957] (GTX637794) diluted at 1:1000.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

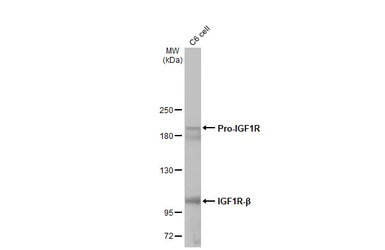

Whole cell extract (30 μg) was separated by 5% SDS-PAGE, and the membrane was blotted with IGF1R beta antibody [HL1957] (GTX637794) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

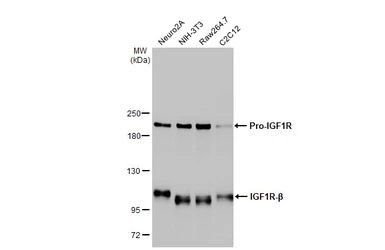

Various whole cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with IGF1R beta antibody [HL1957] (GTX637794) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

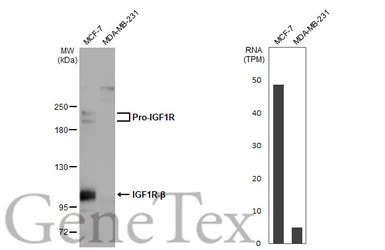

Various whole cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with IGF1R beta antibody [HL1957] (GTX637794) diluted at 1:500. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody. Corresponding RNA expression data for the same cell lines are based on Human Protein Atlas program.

IGF1R beta antibody [HL1957] detects IGF1R beta protein at cell membrane by immunofluorescent analysis.
Sample: MCF-7 cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: IGF1R beta stained by IGF1R beta antibody [HL1957] (GTX637794) diluted at 1:1000.
Blue: Fluoroshield with DAPI (GTX30920).
Scale bar= 10μm.
