Untreated (–) and treated (+) THP-1 whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with IL1 beta antibody [HL1423] (GTX636889) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

IL1 beta antibody [HL1423] detects IL1 beta protein at cytoplasm by immunofluorescent analysis.
Sample: Mock and treated THP-1 cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: IL1 beta stained by IL1 beta antibody [HL1423] (GTX636889) diluted at 1:1000.
Blue: Fluoroshield with DAPI (GTX30920).

IL1 beta antibody [HL1423] detects secreted IL1 beta protein by immunohistochemical analysis.
Sample: Paraffin-embedded mouse intestine.
IL1 beta stained by IL1 beta antibody [HL1423] (GTX636889) diluted at 1:100.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

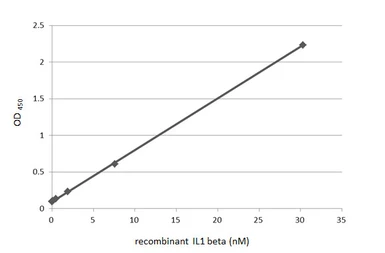

Sandwich ELISA detection of recombinant IL1 beta using antibodies as below.

Capture: IL1 beta antibody [HL1421] (GTX636887) (5 μg/mL)
Detection: HRP-conjugated IL1 beta antibody [HL1423] (GTX636889) (1 μg/mL)
Please notice that GTX636889 needs to be conjugated to HRP to function as the detection antibody when paired with GTX636887. Please contact us for custom HRP-conjugated antibody.

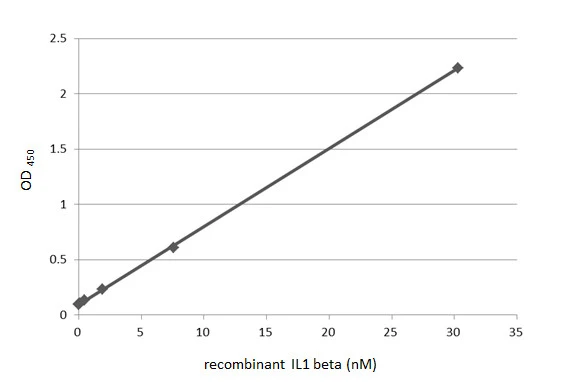

Sandwich ELISA detection of recombinant IL1 beta using antibodies as below.

Capture: IL1 beta antibody [HL1423] (GTX636889) (5 μg/mL)
Detection: HRP-conjugated IL1 beta antibody [HL1421] (GTX636887) (1 μg/mL)
Please notice that GTX636887 needs to be conjugated to HRP to function as the detection antibody when paired with GTX636889. Please contact us for custom HRP-conjugated antibody.
