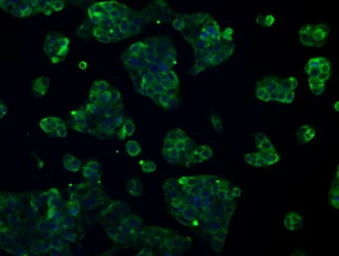

ICC/IF analysis of HeLa cells using GTX84241 L1CAM antibody [2C7].

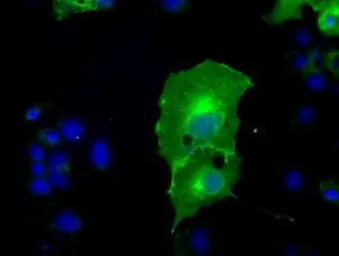

ICC/IF analysis of COS7 cells transiently transfected with L1CAM plasmid using GTX84241 L1CAM antibody [2C7].

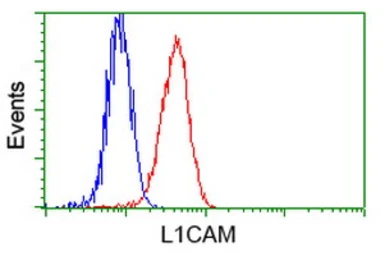

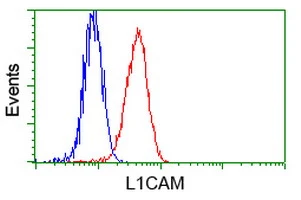

FACS analysis of HEK293T cells transfected with either L1CAM plasmid(Red) or empty vector control plasmid(Blue) using GTX84241 L1CAM antibody [2C7].

IP analysis of DDDDK tagged L1CAM overexpressed HEK293T lysate using GTX84241 L1CAM antibody [2C7].After extensive wash to remove any non-specific binding, the immuno-precipitated products were analyzed with rabbit anti-DDDDK polyclonal antibody.
IP reaction : 2μg antibody / 500μl cell lysate

WB analysis of HEK293T cells transfected with L1CAM plasmid (Right) or empty vector (Left) for 48 hrs using GTX84241 L1CAM antibody [2C7].
Loading : 5 ug per lane

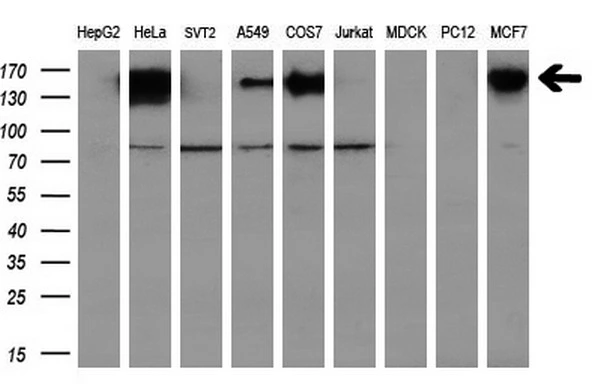

WB analysis of various cell lines using GTX84241 L1CAM antibody [2C7].
Loading : 35 ug per lane
Dilution : 1:200

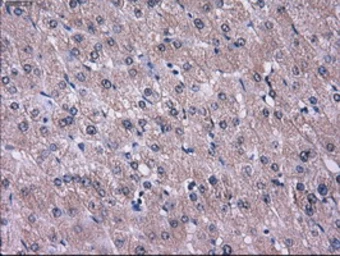

IHC-P analysis of human liver tissue using GTX84241 L1CAM antibody [2C7].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.

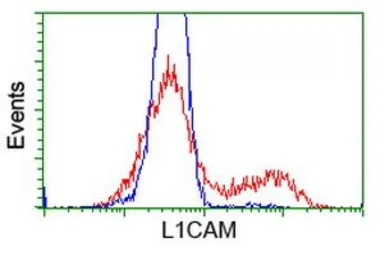

FACS analysis of HeLa cells using GTX84241 L1CAM antibody [2C7].
Red : Primary antibody
Blue : Negative control antibody
