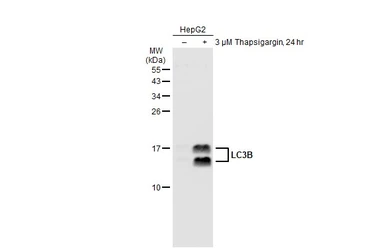

Untreated (–) and treated (+) HepG2 whole cell extracts (30 μg) were separated by 15% SDS-PAGE, and the membrane was blotted with LC3B antibody [GT1187] (GTX00949) diluted at 1:500. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

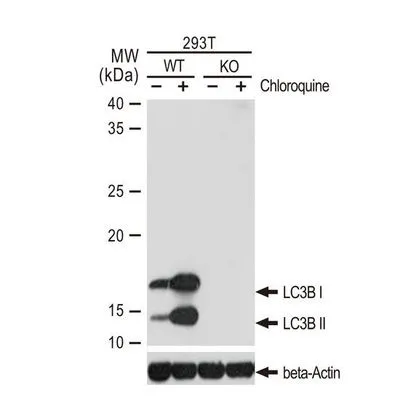

WB analysis of wild-type (WT) and LC3B knockout (KO) 293T cell extracts with/without Chloroquine (50 μM, 37ºC, 20 hrs) treatment using GTX00949 LC3B antibody [GT1187].
Dilution : 1:1000
Loading : 25μg

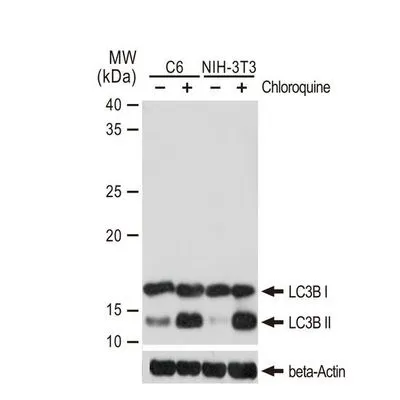

WB analysis of C6 and NIH-3T3 cell extracts with/without Chloroquine (50 μM, 37ºC, 20 hrs) treatment using GTX00949 LC3B antibody [GT1187].
Dilution : 1:1000
Loading : 25μg

ICC/IF analysis of PFA-fixed C6 cells with/without Chloroquine (50 μM, 37ºC, 20 hrs) treatment using GTX00949 LC3B antibody [GT1187].
Right : untreated C6 cells
Left : C6 cells with 50 μM Chloroquine (20 hrs, 37ºC) treatment
Orange : Primary antibody
Blue : DAPI
Dilution : 1:100

IHC-P analysis of Human brain tissue section using GTX00949 LC3B antibody [GT1187].
Dilution : 1:100

IHC-P analysis of Rat brain tissue section using GTX00949 LC3B antibody [GT1187].
Dilution : 1:100

IHC-P analysis of Mouse spinal cord tissue section using GTX00949 LC3B antibody [GT1187].
Dilution : 1:100

ICC/IF analysis of PFA-fixed NIH-3T3 cells with/without Chloroquine (50 μM, 37ºC, 20 hrs) treatment using GTX00949 LC3B antibody [GT1187].
Right : untreated NIH-3T3 cells
Left : NIH-3T3 cells with 50 μM Chloroquine (20 hrs, 37ºC) treatment
Orange : Primary antibody
Blue : DAPI
Dilution : 1:100

ICC/IF analysis of PFA-fixed HeLa cells with/without Chloroquine (50 μM, 37ºC, 20 hrs) treatment using GTX00949 LC3B antibody [GT1187].
Right : untreated HeLa cells
Left : HeLa cells with 50 μM Chloroquine (20 hrs, 37ºC) treatment
Orange : Primary antibody
Blue : DAPI
Dilution : 1:100
