Wild-type (WT) and LDB1 knockout (KO) HeLa cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with LDB1 antibody [N2C3] (GTX104531) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.

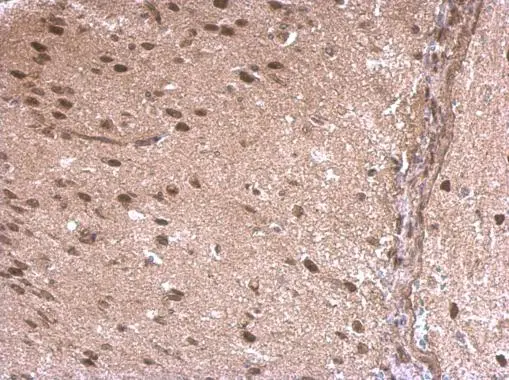

LDB1 antibody [N2C3] detects LDB1 protein at nucleus on rat middle brain by immunohistochemical analysis.
Sample: Paraffin-embedded rat middle brain.
LDB1 antibody [N2C3] (GTX104531) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

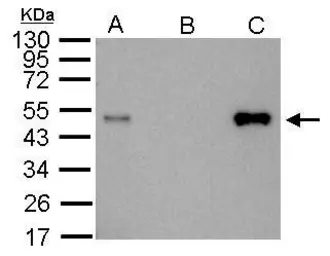

LDB1antibody immunoprecipitates LDB1 protein in IP experiments.
IP Sample: 1000 μg 293T whole cell lysate/extract
A. 20 μg 293T whole cell lysate/extract
B. Control with 2.5 μg of preimmune rabbit IgG
C. Immunoprecipitation of LDB1 protein by 2.5 μg of LDB1 antibody (GTX104531)
12% SDS-PAGE
The immunoprecipitated LDB1 protein was detected by LDB1antibody (GTX104531) diluted at 1:1000.
EasyBlot anti-rabbit IgG (GTX221666-01) was used as a secondary reagent.

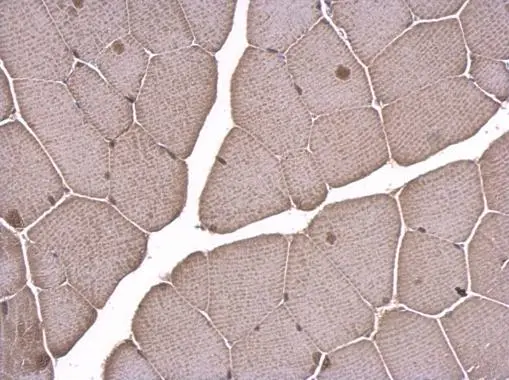

LDB1 antibody [N2C3] detects LDB1 protein at nucleus on mouse muscle by immunohistochemical analysis.
Sample: Paraffin-embedded mouse muscle.
LDB1 antibody [N2C3] (GTX104531) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

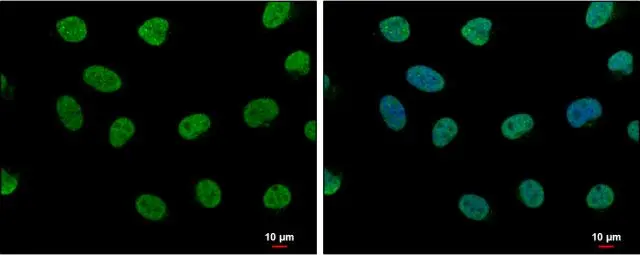

LDB1 antibody [N2C3] detects LDB1 protein at nucleus by immunofluorescent analysis.
Sample: HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: LDB1 protein stained by LDB1 antibody [N2C3] (GTX104531) diluted at 1:500.
Blue: Hoechst 33342 staining.
Scale bar = 10 μm.

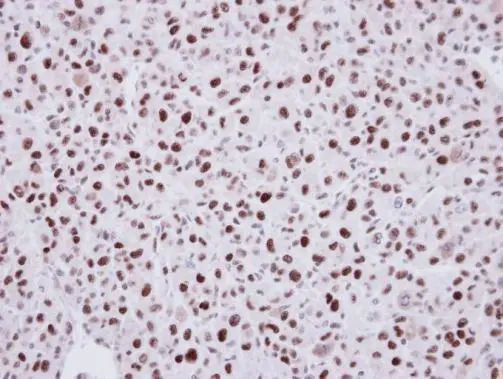

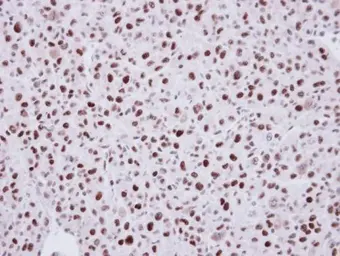

Immunohistochemical analysis of paraffin-embedded U87 Xenograft, using LDB1(GTX104531) antibody at 1:100 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

Sample (50 μg of whole cell lysate)
A: Mouse brain
10% SDS PAGE
GTX104531 diluted at 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

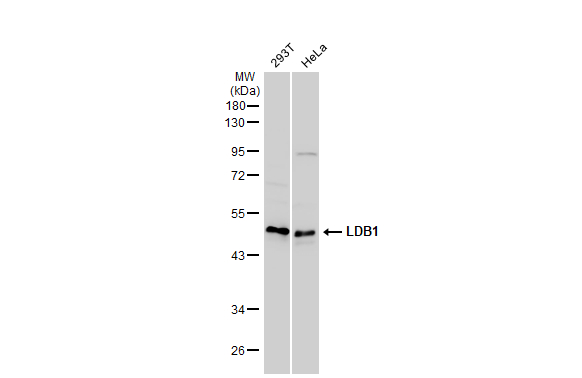

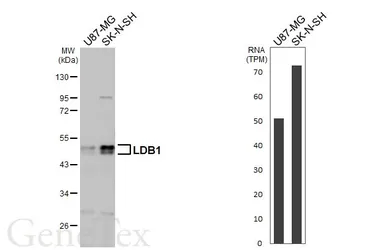

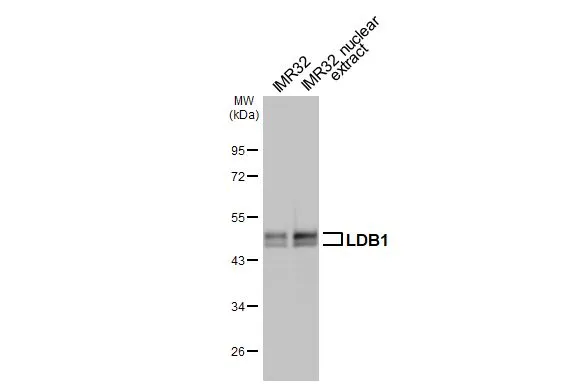

Various whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with LDB1 antibody [N2C3] (GTX104531) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
