Untreated (–) and treated (+) Raji whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with LYN antibody (GTX101222) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.

Wild-type (WT) and CD44 knockout (KO) HeLa cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with LYN antibody (GTX101222) diluted at 1:500. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Confocal immunofluorescence analysis (Olympus FV10i) of paraformaldehyde-fixed A431, using LYN(GTX101222) antibody (Green) at 1:500 dilution. Alpha-tubulin filaments were labeled with GTX11304 (Red) at 1:2000.

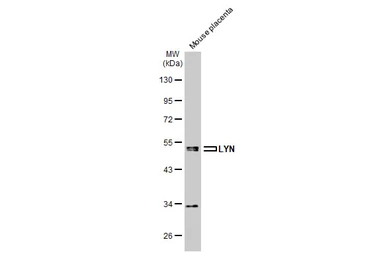

Mouse tissue extract (50 μg) was separated by 10% SDS-PAGE, and the membrane was blotted with LYN antibody (GTX101222) diluted at 1:500. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Immunohistochemical analysis of paraffin-embedded human colon carcinoma, using LYN(GTX101222) antibody at 1:250 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

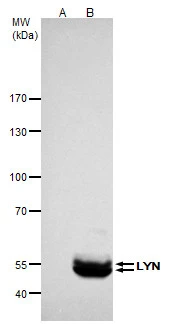

LYN antibody immunoprecipitates LYN protein in IP experiments.
IP samples: K562 whole cell extract
A. Control with 4 μg of preimmune Rabbit IgG
B. Immunoprecipitation of LYN protein by 4 μg LYN antibody (GTX101222)
5 % SDS-PAGE
The immunoprecipitated LYN protein was detected by LYN antibody (GTX101222) diluted at 1:500.
[EasyBlot anti-rabbit IgG (GTX221666-01) was used as a secondary reagent]

LYN antibody detects LYN protein by Western blot analysis.
A. 30 μg Raji whole cell lysate/extract
B. 30 μg K562 whole cell lysate/extract
C. 30 μg Raji whole cell lysate/extract
7.5 % SDS-PAGE
LYN antibody (GTX101222) dilution: 1:1000
