IHC-P analysis of human liver tissue using GTX83913 PECR antibody [2B2].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.
Dilution : 1:50

IHC-P analysis of human bladder tissue using GTX83913 PECR antibody [2B2].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.
Dilution : 1:50

IHC-P analysis of human thyroid carcinoma tissue using GTX83913 PECR antibody [2B2].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.
Dilution : 1:50

ICC/IF analysis of COS7 cells transiently transfected with PECR plasmid using GTX83913 PECR antibody [2B2].

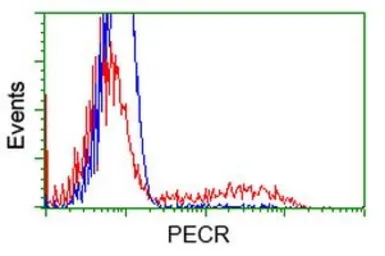

FACS analysis of HEK293T cells transfected with either PECR plasmid(Red) or empty vector control plasmid(Blue) using GTX83913 PECR antibody [2B2].

WB analysis of HEK293T cells transfected with PECR plasmid (Right) or empty vector (Left) for 48 hrs using GTX83913 PECR antibody [2B2].
Loading : 5 ug per lane

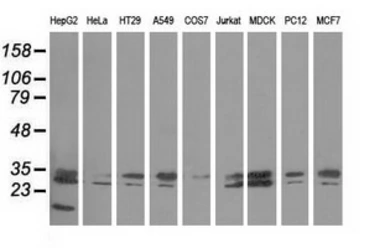

WB analysis of various cell lines using GTX83913 PECR antibody [2B2].
Loading : 35 ug per lane
