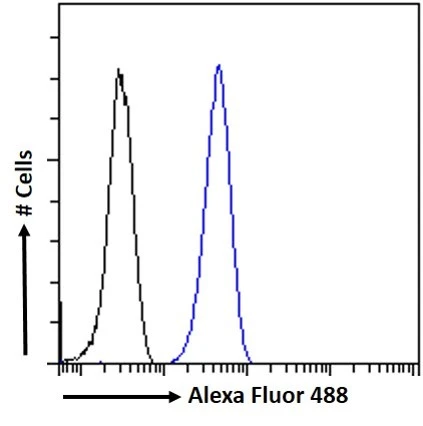

FACS analysis of PFA-fixed HeLa cells using GTX89046 PGC1 alpha antibody, Internal.
Blue line : Primary antibody
Black line : Isotype control
Permeabilization : 0.5% Triton
Dilution : 10 μg/mL

ICC/IF analysis of PFA-fixed HeLa cells using GTX89046 PGC1 alpha antibody, Internal.
Green : Primary antibody
Blue : DAPI
Permeabilization : 0.15% Triton
Dilution : 10 μg/mL

IHC-P analysis of human kidney tissue using GTX89046 PGC1 alpha antibody, Internal.
Antigen retrieval: Heat mediated antigen retrieval in citrate buffer (pH 6).
Dilution : 6 μg/mL

ICC/IF analysis of PFA-fixed U2OS cells using GTX89046 PGC1 alpha antibody, Internal.
Green : Primary antibody
Blue : DAPI
Permeabilization : 0.15% Triton X-100
Dilution : 10 μg/mL

The data was published in the journal BMC Complement Altern Med in 2019. PMID: 31488120
