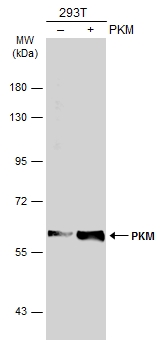

Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with PKM antibody (GTX107977) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

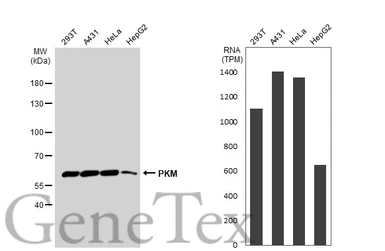

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with PKM antibody (GTX107977) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody. Corresponding RNA expression data for the same cell lines are based on Human Protein Atlas program.

Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with PKM antibody (GTX107977) diluted at 1:500. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

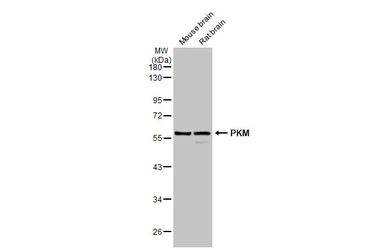

Various tissue extracts (50 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with PKM antibody (GTX107977) diluted at 1:3000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

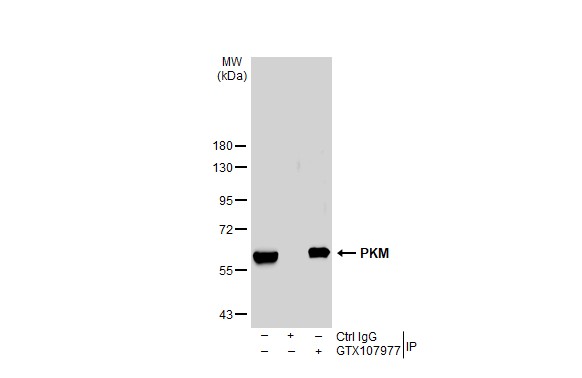

Immunoprecipitation of PKM protein from 293T whole cell extracts using 5 μg of PKM antibody (GTX107977).

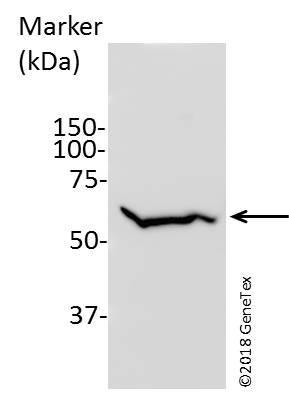

Western blot analysis was performed using PKM antibody (GTX107977).
EasyBlot HRP-conjugated anti rabbit IgG antibody (GTX221666-01).

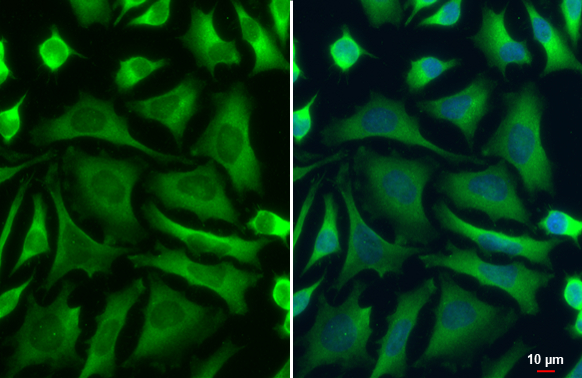

PKM antibody detects PKM protein at cytoplasm by immunofluorescent analysis.
Sample: HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: PKM stained by PKM antibody (GTX107977) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).

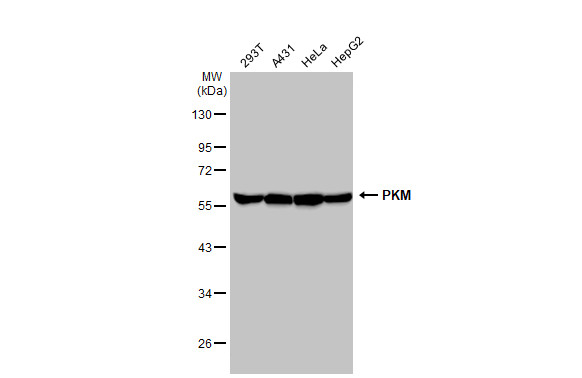

Various whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with PKM antibody (GTX107977) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Pyruvate Kinase (muscle) antibody detects Pyruvate Kinase (muscle) protein at cytoplasm by immunofluorescent analysis.
Sample: HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: Pyruvate Kinase (muscle) protein stained by Pyruvate Kinase (muscle) antibody (GTX107977) diluted at 1:500.
Red: alpha Tubulin, a cytoskeleton marker, stained by alpha Tubulin antibody [GT114] (GTX628802) diluted at 1:500.
Blue: Hoechst 33342 staining.

Pyruvate Kinase (muscle) antibody detects Pyruvate Kinase (muscle) protein at cytosol on human lung carcinoma by immunohistochemical analysis.
Sample: Paraffin-embedded human lung carcinoma.
Pyruvate Kinase (muscle) antibody (GTX107977) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min
