IHC-P analysis of human tonsil tissue using GTX22817 SERCA2 ATPase antibody [IID8].
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:200

IHC-P analysis of human liver tissue using GTX22817 SERCA2 ATPase antibody [IID8].
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:200

ICC/IF analysis of U251 cells using GTX22817 SERCA2 ATPase antibody [IID8]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:200 overnight at 4ºC

IHC-P analysis of human heart tissue using GTX22817 SERCA2 ATPase antibody [IID8].
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:200

ICC/IF analysis of A549 cells using GTX22817 SERCA2 ATPase antibody [IID8]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:200 overnight at 4ºC

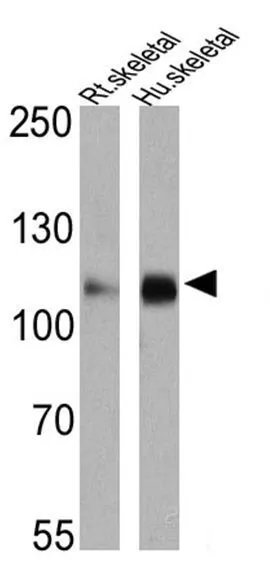

WB analysis of 25 ug of rat skeletal muscle (lane 1) and human skeletal muscle (lane 2) using GTX22817 SERCA2 ATPase antibody [IID8].
Dilution : 1:1000 (rat muscle) and 1:2000 (human muscle)

ICC/IF analysis of HeLa cells using GTX22817 SERCA2 ATPase antibody [IID8]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:200 overnight at 4ºC
