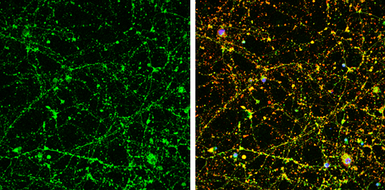

UNC13B antibody [N3C1], Internal detects UNC13B protein by immunofluorescent analysis.
Sample: DIV9 rat E18 primary cortical neuron cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: UNC13B stained by UNC13B antibody [N3C1], Internal (GTX111179) diluted at 1:500.
Red: beta Tubulin 3/ Tuj1, stained by beta Tubulin 3/ Tuj1 antibody [GT1338] (GTX631831) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).

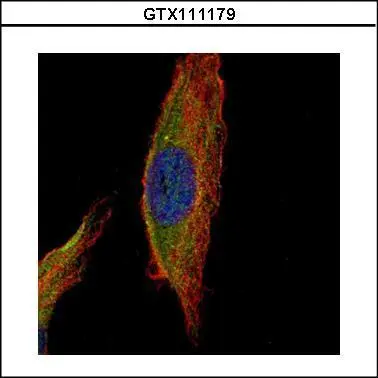

Confocal immunofluorescence analysis (Olympus FV10i) of methanol-fixed HeLa, using UNC13B(GTX111179) antibody (Green) at 1:500 dilution. Alpha-tubulin filaments were labeled with GTX11304 (Red) at 1:2000.

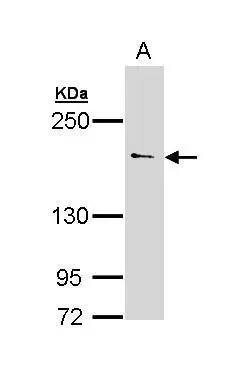

Sample (30 ug of whole cell lysate)
A: 293T
5% SDS PAGE
GTX111179 diluted at 1:500

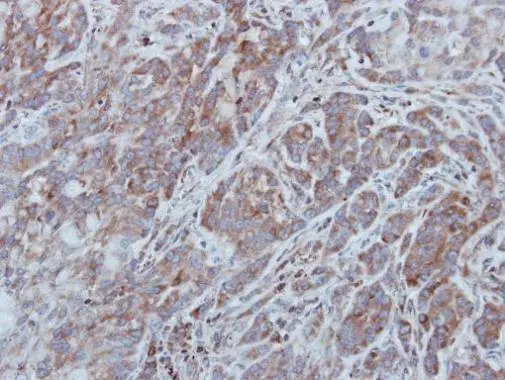

Immunohistochemical analysis of paraffin-embedded A549 xenograft, using UNC13B(GTX111179) antibody at 1:500 dilution.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min
