Untreated (–) and treated (+) HeLa whole cell extracts (30 μg) were separated by 15% SDS-PAGE, and the membrane was blotted with Ubiquitin antibody [GT751] (GTX630147) diluted at 1:500.

Ubiquitin antibody [GT751] detects Ubiquitin protein by immunofluorescent analysis.
Sample: HeLa cells were fixed in ice-cold MeOH for 5 min.
Green: Ubiquitin stained by Ubiquitin antibody [GT751] (GTX630147) diluted at 1:500.
Red: alpha Tubulin, a cytoskeleton marker, stained by alpha Tubulin antibody [GT114] (GTX628802) diluted at 1:1000.
Blue: Fluoroshield with DAPI (GTX30920).

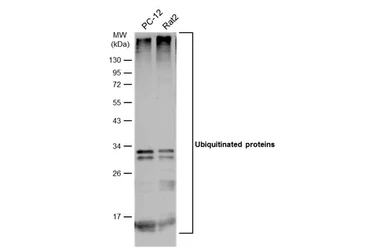

Various whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with Ubiquitin antibody [GT751] (GTX630147) diluted at 1:1000. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.

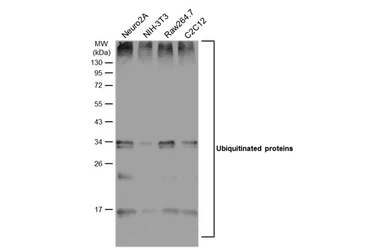

Various whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with Ubiquitin antibody [GT751] (GTX630147) diluted at 1:1000. The HRP-conjugated anti-mouset IgG antibody (GTX213111-01) was used to detect the primary antibody.

Ubiquitin antibody [GT751] detects Ubiquitin protein at cytoplasm and nucleus by immunohistochemical analysis.
Sample: Paraffin-embedded human endometrial carcinoma.
Ubiquitin stained by Ubiquitin antibody [GT751] (GTX630147) diluted at 1:200.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

Untreated (–) and treated (+) HeLa whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membranes were blotted with Ubiquitin antibody [GT751] (GTX630147) diluted at 1:500 and competitor's antibody (sc-53509) diluted at 1:500. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.

*The competitor is not affiliated with GeneTex and does not endorse this product.

Ubiquitin antibody [GT751] detects Ubiquitin protein at cytoplasm and nucleus by immunohistochemical analysis.
Sample: Paraffin-embedded human breast carcinoma.
Ubiquitin stained by Ubiquitin antibody [GT751] (GTX630147) diluted at 1:200.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min
