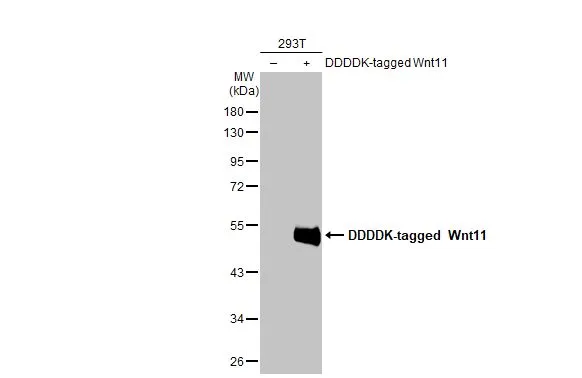

Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with Wnt11 antibody (GTX105971) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Various whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with Wnt11 antibody (GTX105971) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Whole cell extract (30 μg) was separated by 10% SDS-PAGE, and the membrane was blotted with Wnt11 antibody (GTX105971) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

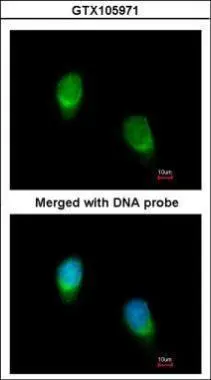

WNT11 antibody detects WNT11 protein at cytoplasm by immunofluorescent analysis.
Sample: HeLa cells were fixed in ice-cold MeOH for 5 min.
Green: WNT11 protein stained by WNT11 antibody (GTX105971) diluted at 1:500.
Blue: Hoechst 33342 staining.
Scale bar = 10 μm.

Immunohistochemical analysis of paraffin-embedded lung SCC xenograft, using WNT11(GTX105971) antibody at 1:100 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

Rat tissue extract (50 μg) was separated by 10% SDS-PAGE, and the membrane was blotted with Wnt11 antibody (GTX105971) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.

Mouse tissue extract (50 μg) was separated by 10% SDS-PAGE, and the membrane was blotted with Wnt11 antibody (GTX105971) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

WNT11 antibody detects WNT11 protein at secreted on mouse colon by immunohistochemical analysis.
Sample: Paraffin-embedded mouse colon.
WNT11 antibody (GTX105971) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

Mouse tissue extract (50 μg) was separated by 10% SDS-PAGE, and the membrane was blotted with Wnt11 antibody (GTX105971) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Immunofluorescence analysis of paraformaldehyde-fixed HeLa, using WNT11(GTX105971) antibody at 1:200 dilution.

The data was published in the journal EMBO J in 2018.PMID: 29378775
