Zika virus NS4B protein antibody

Cat. No. GTX133321
Cat. No.  GTX133321
Anti-Zika virus NS4B protein antibody used in Western Blot (WB). GTX133321
GTX133321 WB Image

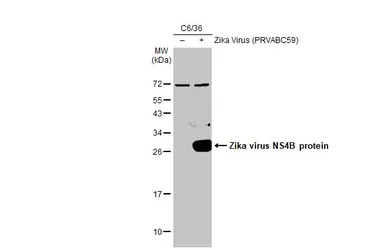

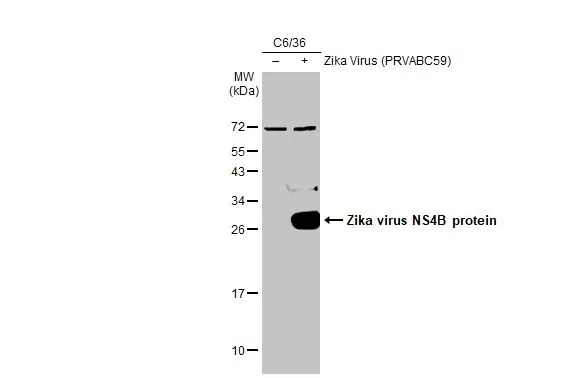

Non-infected (–) and infected (+) C6/36 whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with Zika virus NS4B protein antibody (GTX133321) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

1 / 8
Anti-Zika virus NS4B protein antibody used in Western Blot (WB). GTX133321
GTX133321 WB Image

Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with Zika virus NS4B protein antibody (GTX133321) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

2 / 8
Anti-Zika virus NS4B protein antibody used in IHC-P (cell pellet) (IHC-P (cell pellet)). GTX133321
GTX133321 IHC-P (cell pellet) Image

Zika virus NS4B protein antibody detects Zika virus NS4B protein at cytoplasm by immunohistochemical analysis.
Sample: Paraffin-embedded mock and Zika virus NS4B transfected 293T.
Green: Zika virus NS4B stained by Zika virus NS4B protein antibody (GTX133321) diluted at 1:1000.
Blue: Fluoroshield with DAPI (GTX30920).
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

3 / 8
Anti-Zika virus NS4B protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133321
GTX133321 ICC/IF Image

Immunofluorescent analysis of arboviruses infected cells using Zika virus NS4B protein antibody (GTX133321).
Samples: EUROIMMUN Arboviral Fever Mosaic 2 slide (FR 2668-1010-1).
Green:Zika virus NS4B protein antibody (GTX133321) diluted at 1:500.
Blue: Hoechst 33342 staining.
Scale bar = 10 μm.

4 / 8
Anti-Zika virus NS4B protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133321
GTX133321 ICC/IF Image

Immunofluorescent analysis of mock and Zika virus-infected cells using Zika virus NS4B protein antibodyantibody (GTX133321).
Sample: Zika virus non-infected and infected cells slide.
Green: Zika virus NS4B protein antibodyantibody (GTX133321) diluted at 1:100.
Blue: Fluoroshield with DAPI (GTX30920).

5 / 8
Anti-Zika virus NS4B protein antibody used in Western Blot (WB). GTX133321
GTX133321 WB Image

The data was published in the journal Elife in 2018.PMID: 30511641

6 / 8
Anti-Zika virus NS4B protein antibody used in Western Blot (WB). GTX133321
GTX133321 WB Image

The data was published in the journal Elife in 2018.PMID: 30511641

7 / 8
Anti-Zika virus NS4B protein antibody used in Western Blot (WB). GTX133321
GTX133321 WB Image

The data was published in the journal Elife in 2018.PMID: 30511641

8 / 8
Anti-Zika virus NS4B protein antibody used in Western Blot (WB). GTX133321
Anti-Zika virus NS4B protein antibody used in Western Blot (WB). GTX133321
Anti-Zika virus NS4B protein antibody used in IHC-P (cell pellet) (IHC-P (cell pellet)). GTX133321
Anti-Zika virus NS4B protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133321
Anti-Zika virus NS4B protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133321
Anti-Zika virus NS4B protein antibody used in Western Blot (WB). GTX133321
Anti-Zika virus NS4B protein antibody used in Western Blot (WB). GTX133321
Anti-Zika virus NS4B protein antibody used in Western Blot (WB). GTX133321
  • Host
    Rabbit
  • Clonality
    Polyclonal
  • Isotype
    IgG
  • Applications
    WB ICC/IF IHC-P (cell pellet)
  • Reactivity
    Zika virus
See all Zika virus NS4B protein products
